LOUDEN® 603.6 SuperTrack
Product Overview
Louden 3.33” flange SuperTrack incorporates a wider flange allowing the use of wheels with wide treads and extra-large bearings. This track provides a beam of exceptional strength for all types of motorized carriers. Since the area of the track receiving the trolley is flat, and the tread of the wheeI is also flat, increased wheel and track life is attained.

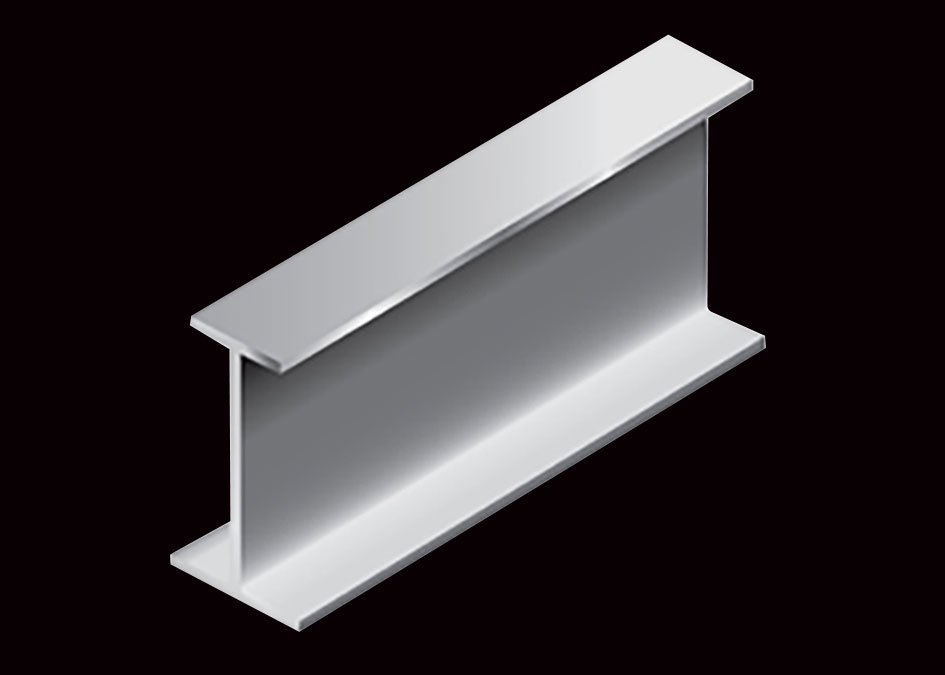

LOUDEN Series 603.6 SuperTrack is a high carbon, high manganese rolled steel shape.
- Operating flange width: 3.33”
- Suspension flange width: 2”
- Maximum permissible wheel load: 2500 lbs. (5000 lbs. per 2-wheel trolley).
LOUDEN® runway track sections are tailor-made for your job requirements. Manufactured to maintain close dimensional tolerances, each section of track is fabricated and formed to layout drawings and specifications.
